CURTINA X403

Name: Curtain niche profile CURTINA X403 with three tracks
Brand: Alumineu
SKU: CURTINA-X403

Colour: Black matte

Length

In stock, Delivery 24–48 h

Description

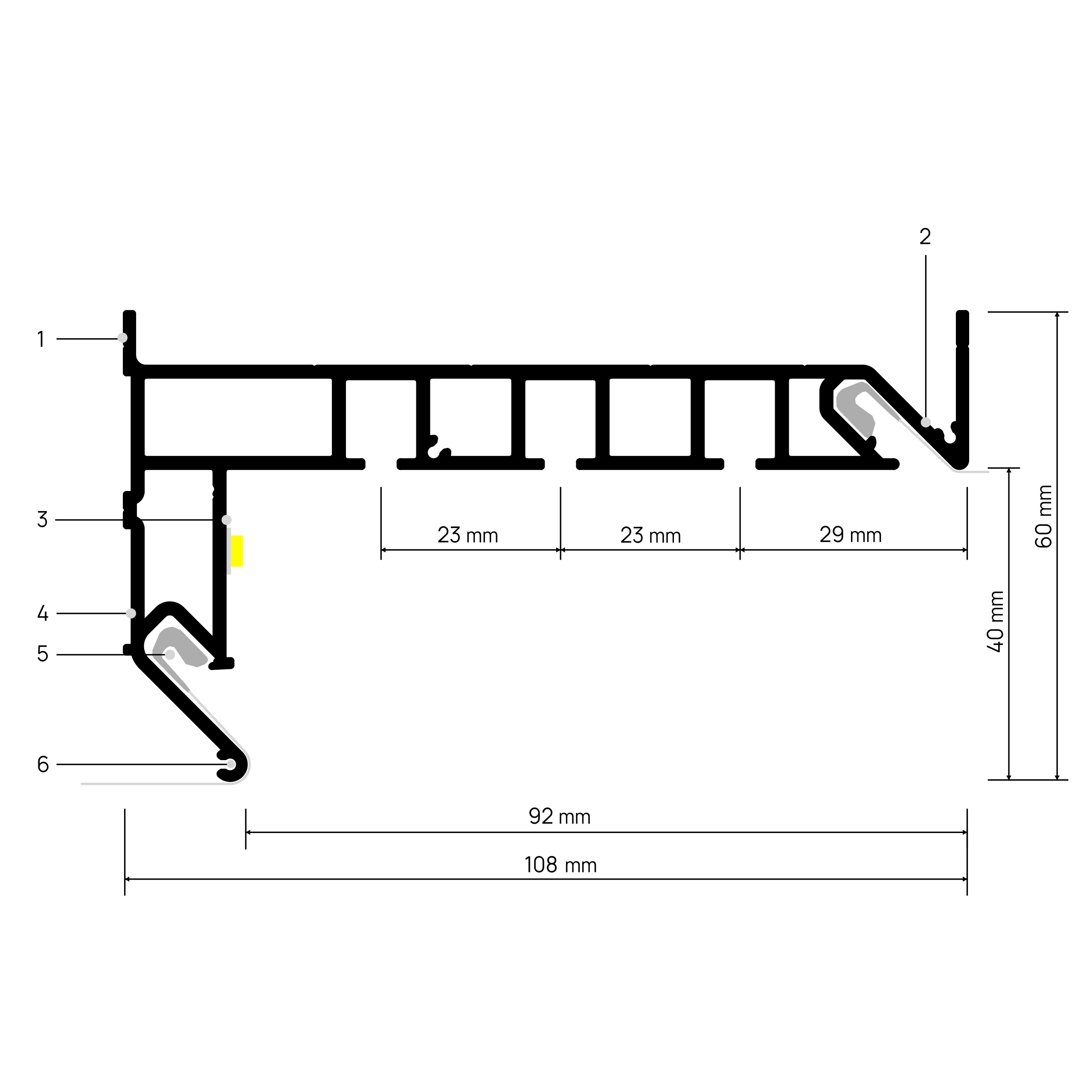

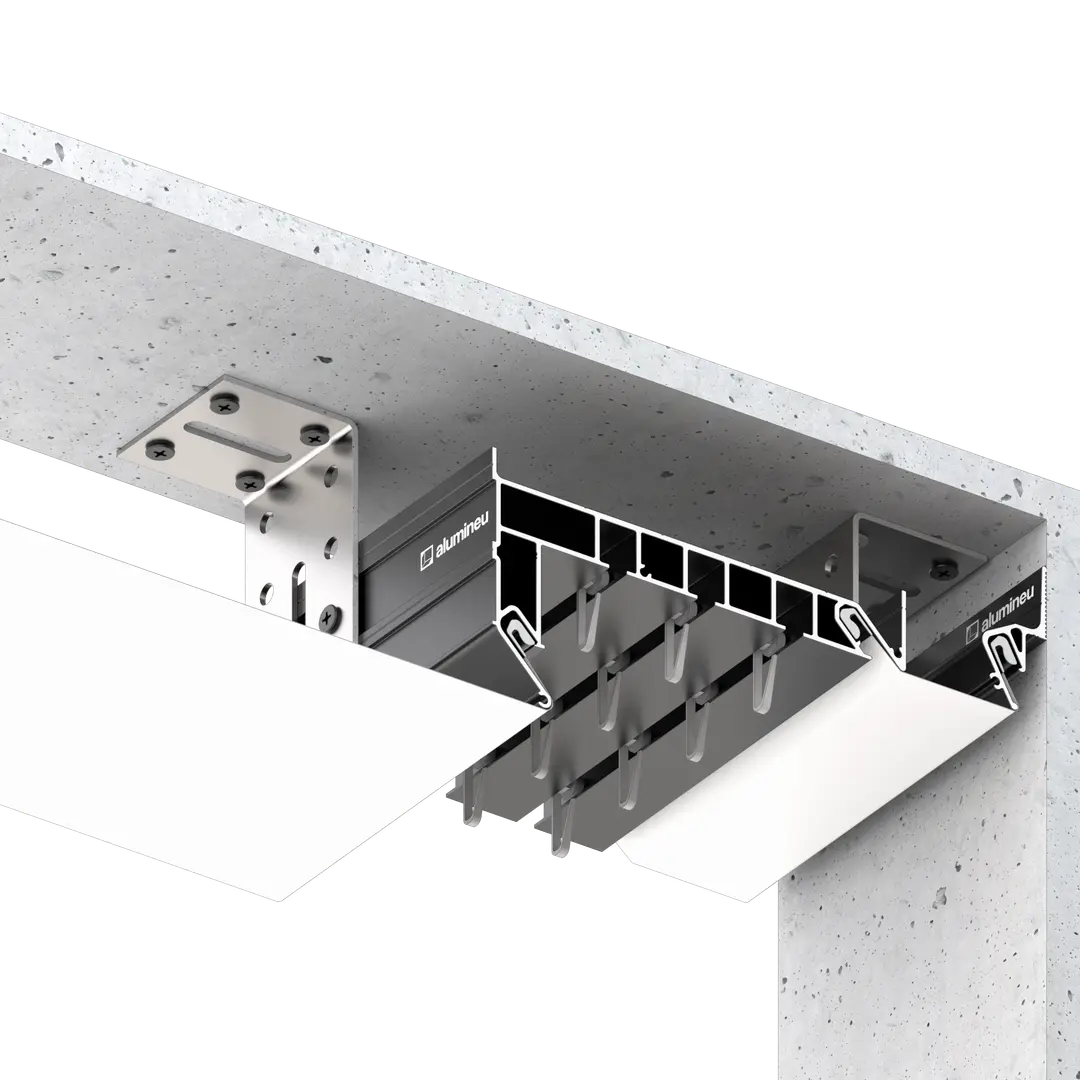

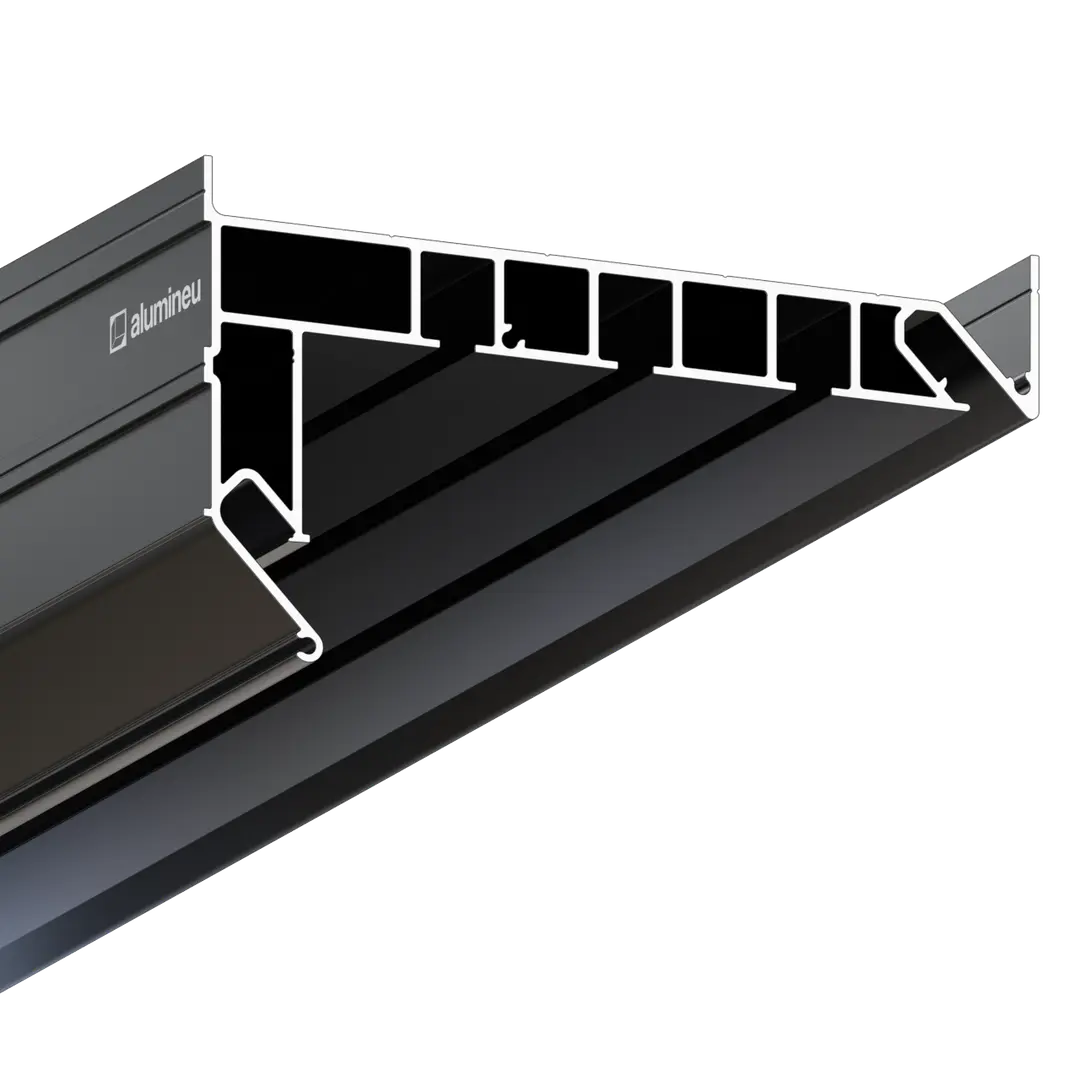

The CURTINA X403 aluminium profile forms a semi-open curtain niche with three integrated tracks and lighting. It is designed for two-level stretch ceilings with a harpoon fastening system for PVC membranes. The three tracks hold curtains and drapes within one niche.

The upper and lower membranes are fastened to the same body. The tracks sit at the level of the upper membrane, keeping hooks and gliders out of direct view. The LED strip shelf is separate from the tracks.

At the junction between the niche and the wall, CURTINA X403 joins classic, shadow and floating wall profiles. Curtains hang on HOOKARA Y701 roller hooks or SLIDENE Y702 roller gliders.

The PRASEKA Y805 tool punches an opening in each track for removing hooks and gliders together with the curtains. A HOOKEND Y704 stop fitted before the opening keeps them inside the track. Remove the stop before taking down the curtains.

Technical specifications

Brand:: alumineu
Material:: Aluminum
Membrane attachment:: Harpoon
Number of tracks:: 3

What's in the box

The profile is supplied in the length selected when ordering. No additional components are included in the package.

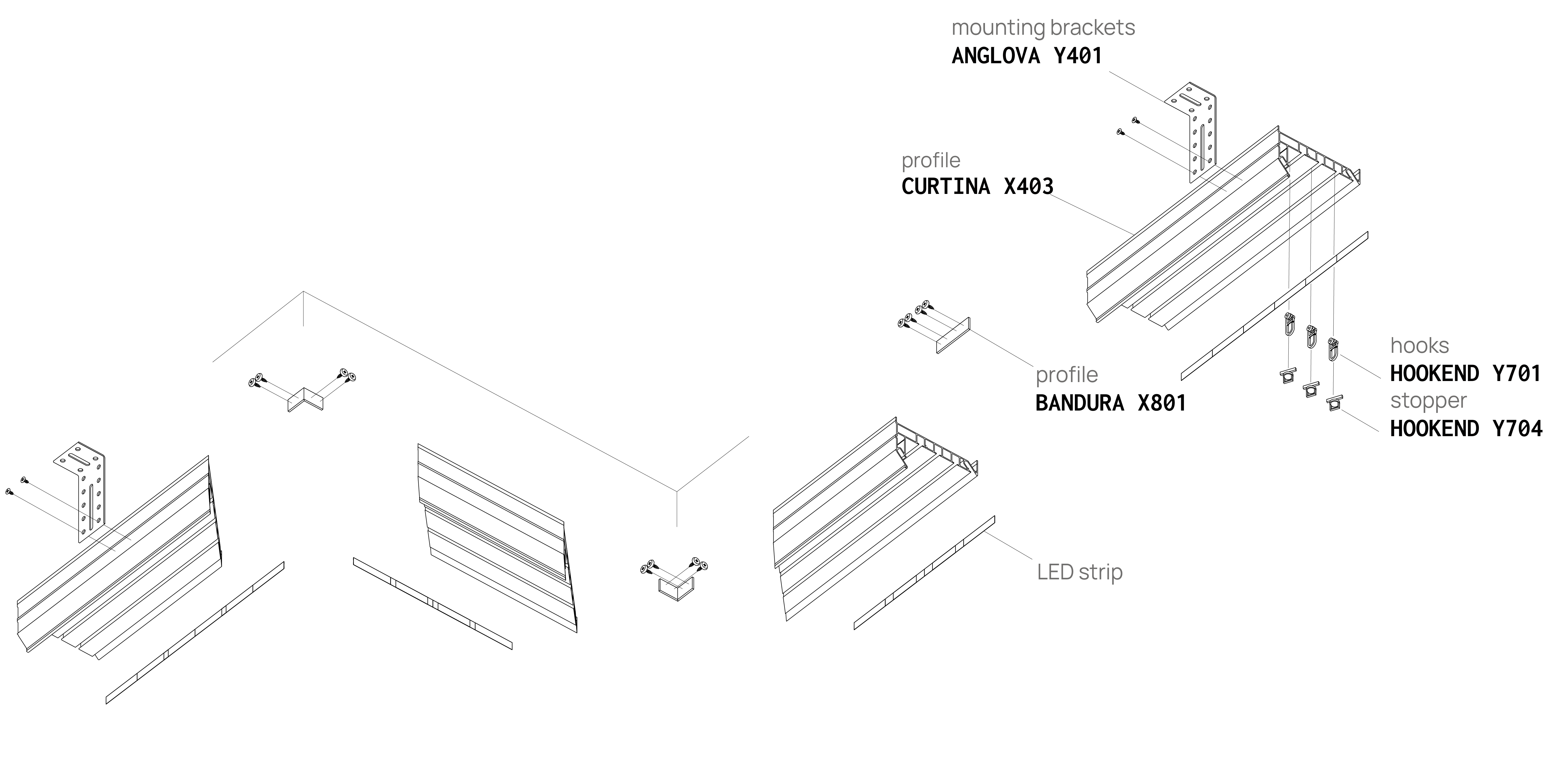

Installation

Fix the profile to the ceiling slab with screws or anchors through mounting brackets at intervals of no more than 1.5 m. Installation flush against a wall is permitted.

Join profile sections with a 2 mm pin and a 15 mm joining band without a step or visible gap.

Insert the upper membrane with a standard straight spatula. For the lower membrane, use a spatula with a working part at least 35 mm long and an angle of 70–90°. The membrane can be removed without damage.

Adhere an LED strip up to 25 mm wide to the separate shelf. The stretch membrane does not need to be removed to replace the strip.
