CURTINA X404

Name: Reinforced curtain niche profile CURTINA X404, three tracks
Brand: Alumineu
SKU: CURTINA-X404

Colour: White gloss

Length

In stock, Delivery 24–48 h

Description

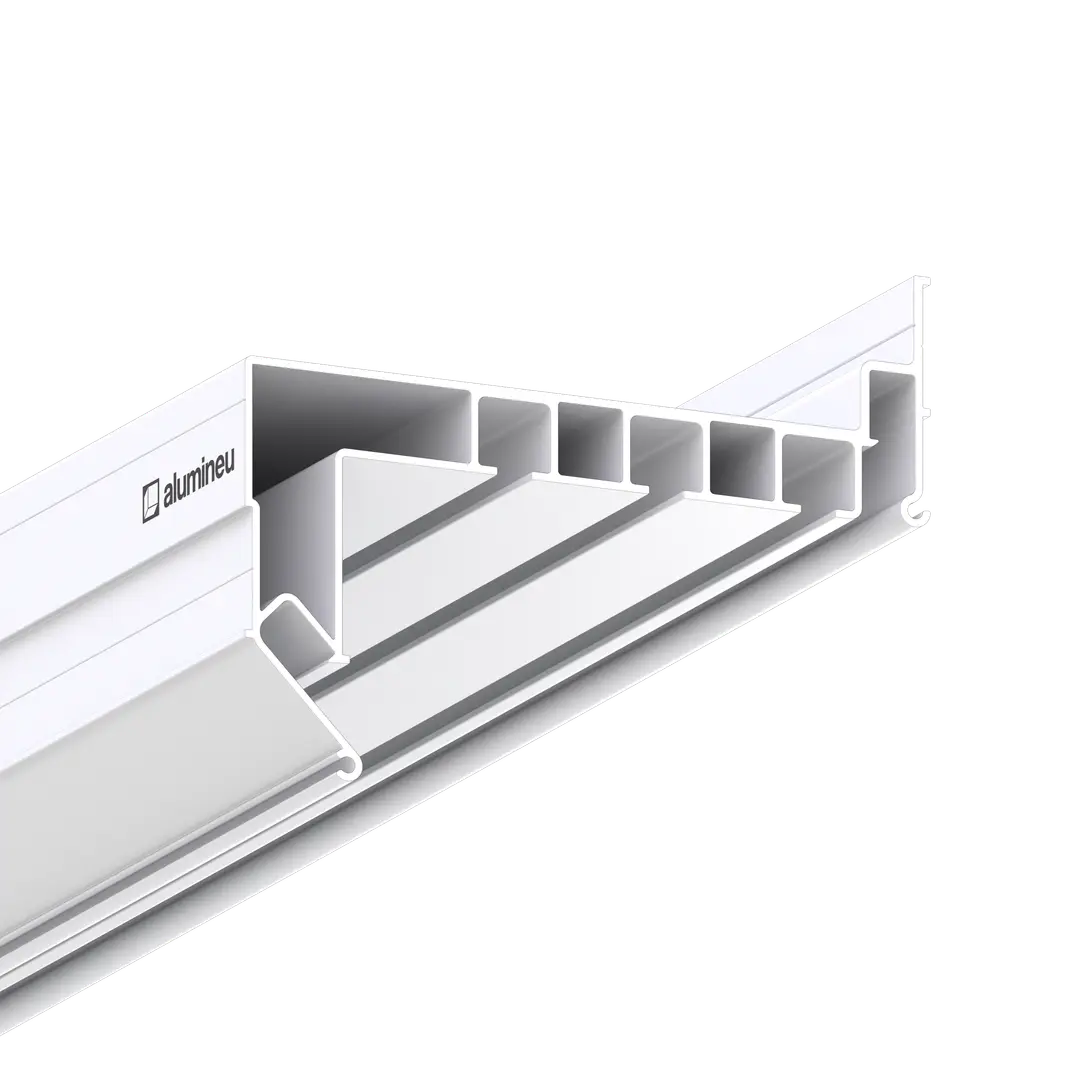

The CURTINA X404 aluminium profile forms a semi-open curtain niche with three integrated tracks and lighting. It is designed for two-level stretch ceilings with a harpoon fastening system for PVC membranes.

The upper membrane is inserted directly, while the lower membrane is fastened into another harpoon groove in the same body. The taller mounting wall increases profile rigidity and leaves room for the mounting brackets.

The three tracks sit at the level of the upper membrane, and the LED strip is adhered to a separate shelf. CURTINA X404 joins classic, shadow and floating wall profiles.

Curtains hang on HOOKARA Y701 roller hooks or SLIDENE Y702 roller gliders. To remove the curtains, the PRASEKA Y805 tool punches an opening in each track through which the hooks and gliders come out together with the curtains. A HOOKEND Y704 stop before the opening prevents them from leaving the track during normal use. Remove the stop before taking down the curtains.

Technical specifications

Brand:: alumineu
Material:: Aluminum
Membrane attachment:: Harpoon
Number of tracks:: 3

What's in the box

The profile is supplied in the length selected when ordering. No additional components are included in the package.

Installation

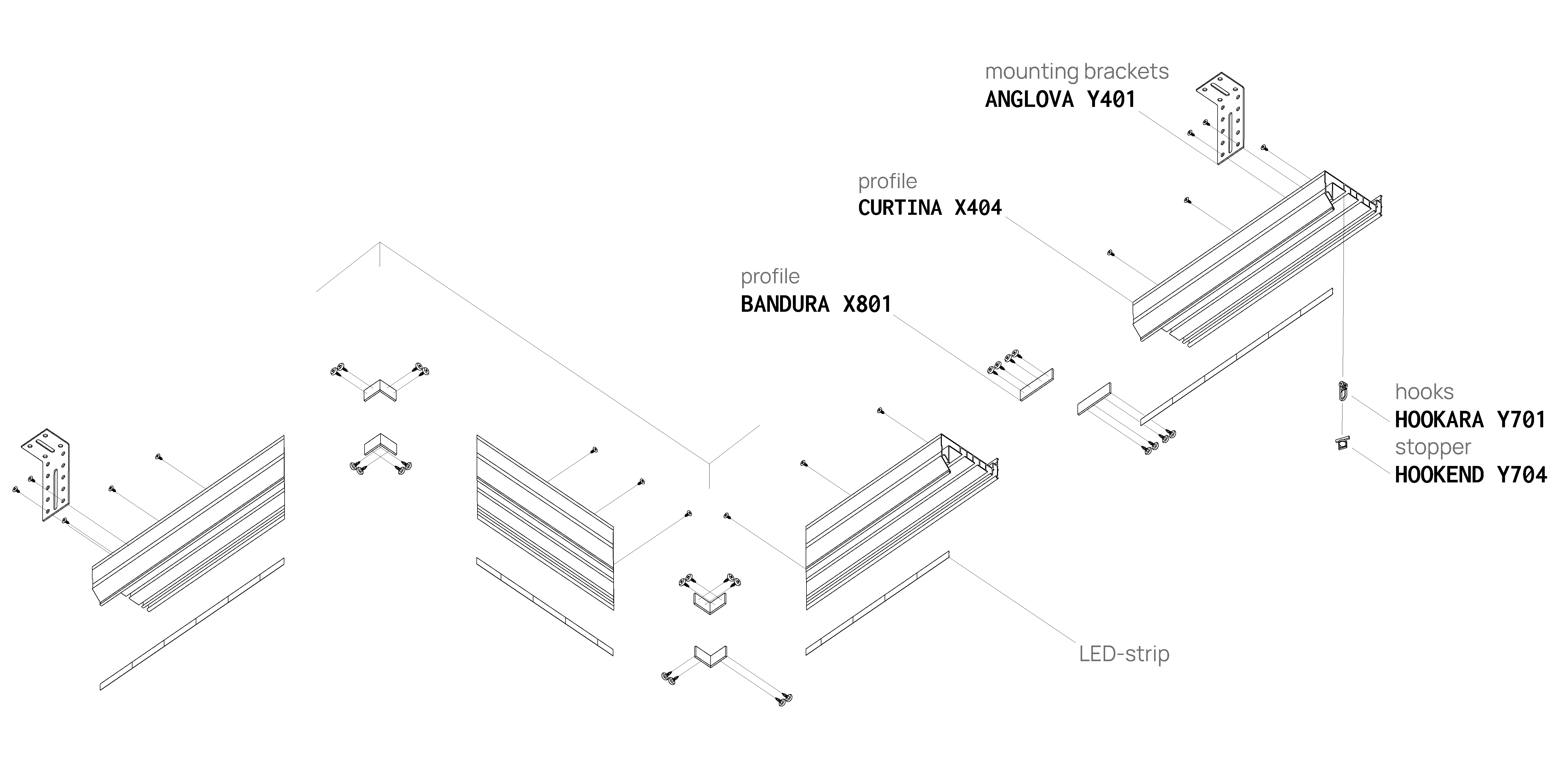

Fix the profile to the ceiling slab with screws or anchors through mounting brackets at intervals of no more than 1.5 m. Installation flush against a wall is permitted.

Join profile sections with a 2 mm pin and a 15 mm joining band without a step or visible gap.

Insert the upper membrane with a standard straight spatula. For the lower membrane, use a spatula with a working part at least 35 mm long and an angle of 70–90°. The membrane can be removed without damage.

Adhere an LED strip up to 25 mm wide to the separate shelf. The stretch membrane does not need to be removed to replace the strip.
