CURTINA X405 M
Colour: Black matte
Length
In stock, Delivery 24–48 h
Description

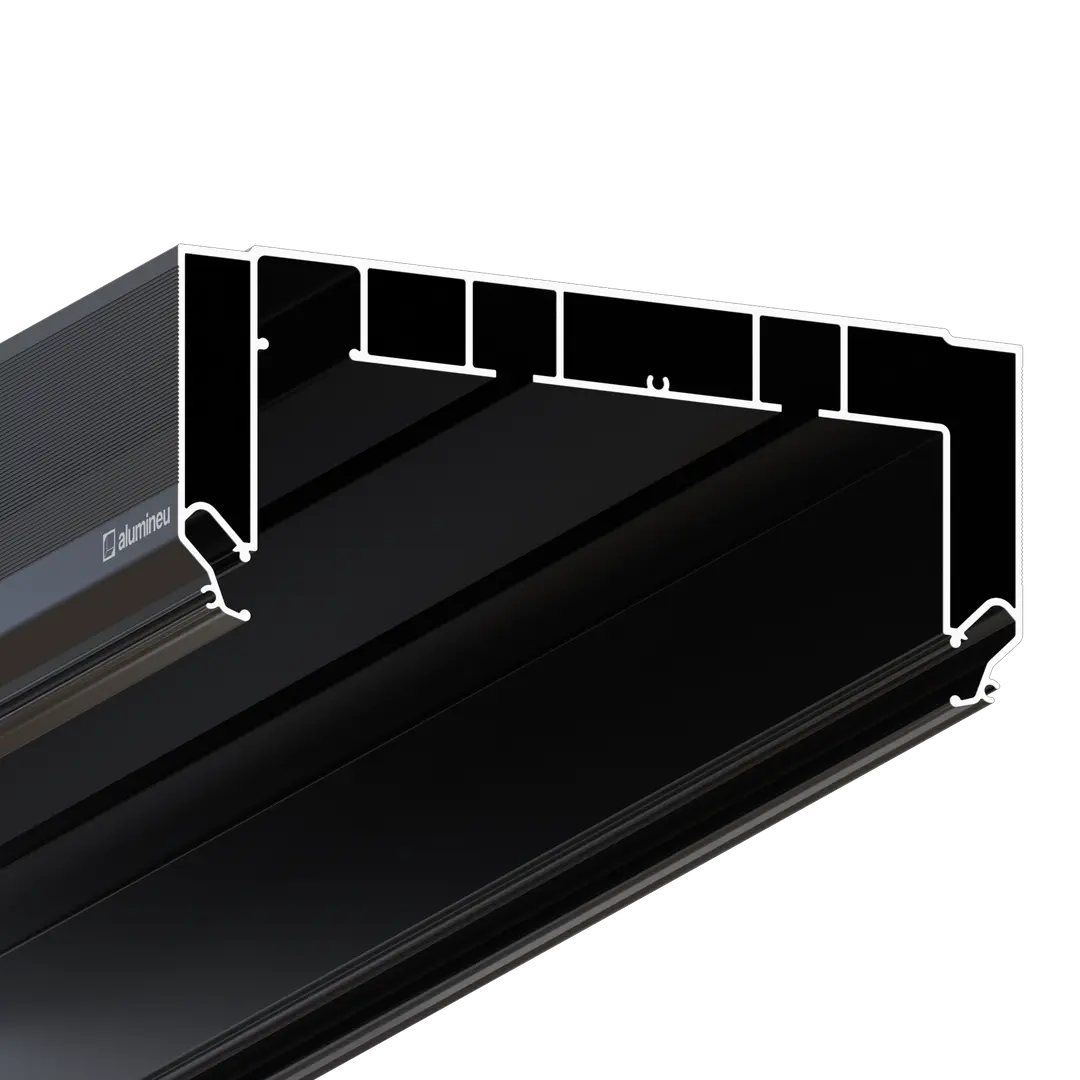

The CURTINA X405 M aluminium profile forms an enlarged closed curtain niche with two tracks and lighting. It is designed for stretch ceilings with a harpoon fastening system for PVC membranes. The enlarged tracks are designed for SLIDENE Y703 roller gliders.
The membranes are fastened at the same level on both sides of the niche, and an INSERTA Y008 decorative insert closes the harpoon grooves. For lighting, install an LED strip inside the profile's lighting chamber. An INSERTA Y015 or DIFFUSY Y114 diffuser closes the chamber, conceals the LEDs and produces even illumination. An ENDCAPP Y208 end cap closes the open end of a freestanding niche.

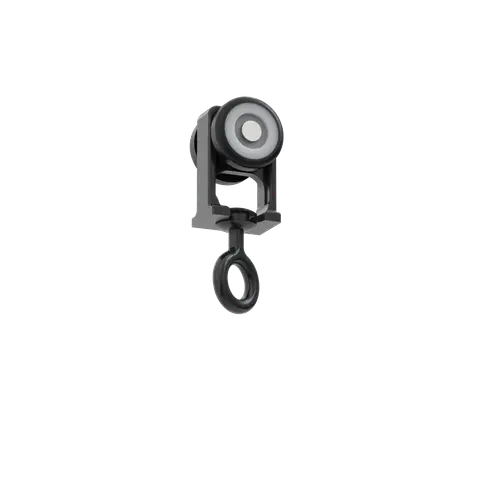

Curtains hang on SLIDENE Y703 roller gliders. An opening can be drilled in each track to remove the gliders together with the curtains. A HOOKEND Y704 stop before the opening keeps the gliders inside the track. Remove the stop before taking down the curtains.
Technical specifications
- Brand:
- alumineu
- Material:
- Aluminum
- Membrane attachment:
- Harpoon
- Number of tracks:
- 2
What's in the box
The profile is supplied in the length selected when ordering. No additional components are included in the package.
Installation
Adhere an LED strip up to 14 mm wide to the shelf inside the lighting chamber. Close the chamber with an INSERTA Y015 or DIFFUSY Y114 diffuser. To replace the strip, remove the diffuser while the stretch membrane stays in place.
Profile in the interior
