CURTINA X408
Colour: Mill finish
In stock, Delivery 24–48 h
Description

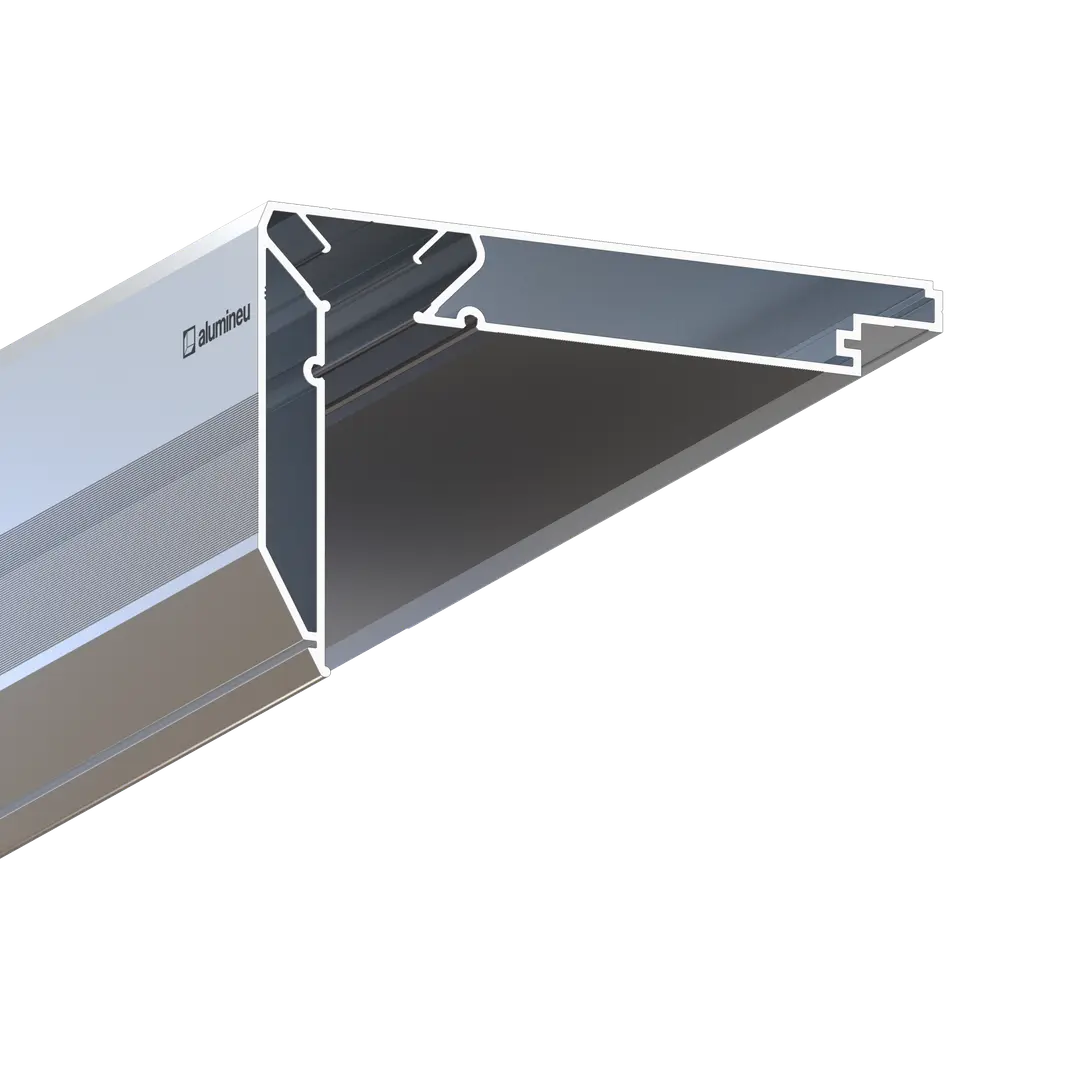

The CURTINA X408 aluminium profile forms a semi-open curtain niche with lighting at the junction of two stretch-ceiling levels. It is designed for PVC membranes with a harpoon fastening system. The unpainted body is concealed by the membrane.
The profile has no integrated tracks. Fit the double-track CURTINA X406 or single-track CURTINA X407 on the platform inside the niche.
For lighting, install an LED strip inside the profile's lighting chamber. An INSERTA Y015 or DIFFUSY Y114 diffuser closes the chamber and the harpoon groove, conceals the LEDs and produces even illumination.
Technical specifications
- Brand:
- alumineu
- Material:
- Aluminum
- Membrane attachment:
- Harpoon
What's in the box
The profile is supplied in the length selected when ordering. No additional components are included in the package.
Installation
Adhere an LED strip up to 14 mm wide to the shelf inside the lighting chamber. Close the chamber with an INSERTA Y015 or DIFFUSY Y114 diffuser. To replace the strip, remove the diffuser while the stretch membrane stays in place.

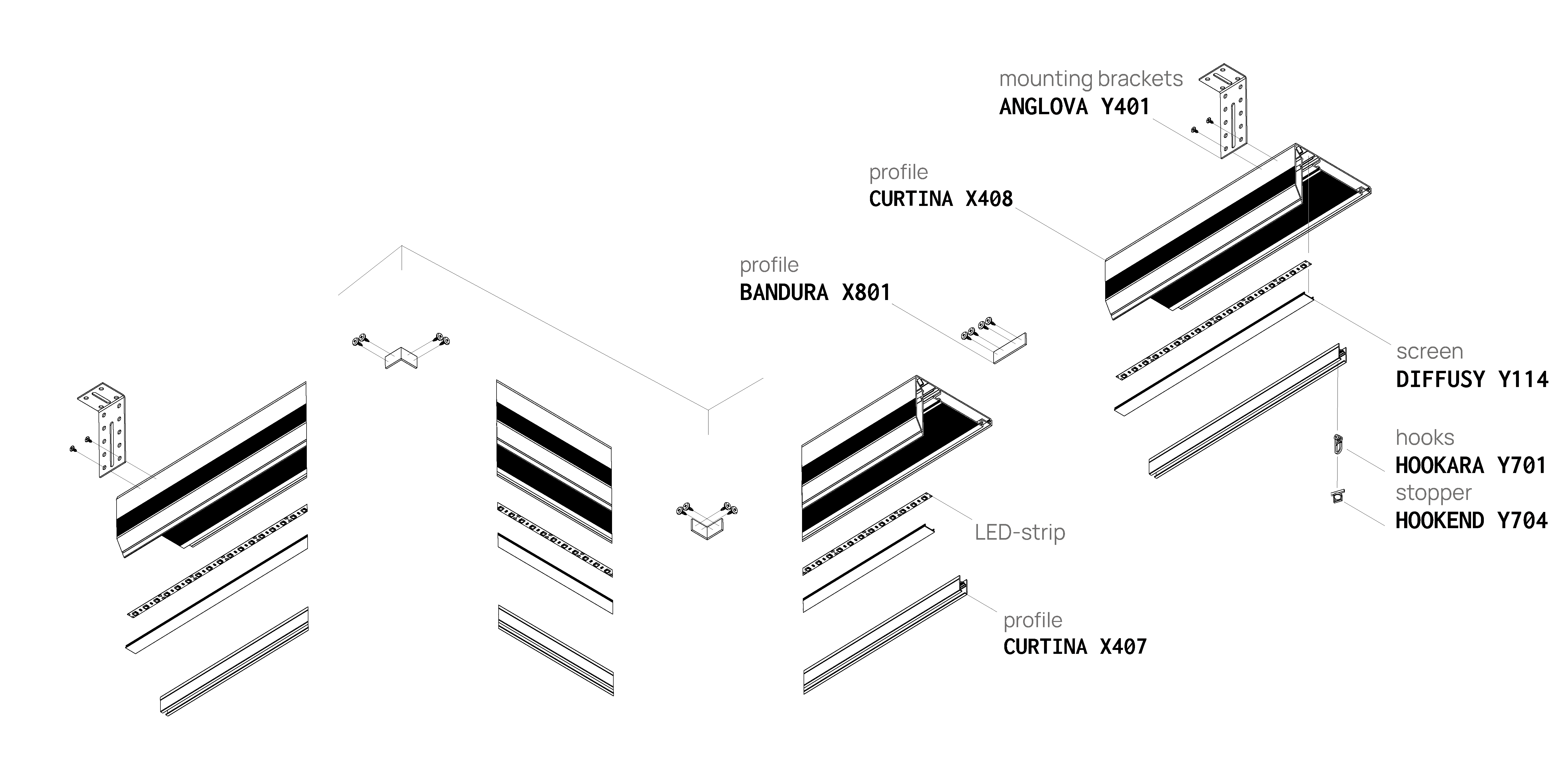

Installation diagram
Profile in the interior
