CURTINA X409
Colour: Mill finish
In stock, Delivery 24–48 h
Description
The CURTINA X409 aluminium profile forms a semi-open niche with lighting and a separate surface-mounted curtain rail. It is designed for two-level stretch ceilings with a harpoon fastening system for PVC membranes. The unpainted body is concealed beneath the membrane.
Install CURTINA X406 with two tracks and central lighting or the single-track CURTINA X407 inside the niche. The platform on the body supports the selected curtain rail.
An INSERTA Y015 or DIFFUSY Y114 diffuser closes the lighting chamber and the harpoon groove. It conceals the LED strip and produces even illumination.
Technical specifications
- Brand:
- alumineu
- Material:
- Aluminum
- Membrane attachment:
- Harpoon
What's in the box
The profile is supplied in the length selected when ordering. No additional components are included in the package.
Installation
Adhere an LED strip up to 14 mm wide to the shelf inside the lighting chamber. Close the chamber with an INSERTA Y015 or DIFFUSY Y114 diffuser. To replace the strip, remove the diffuser while the stretch membrane stays in place.

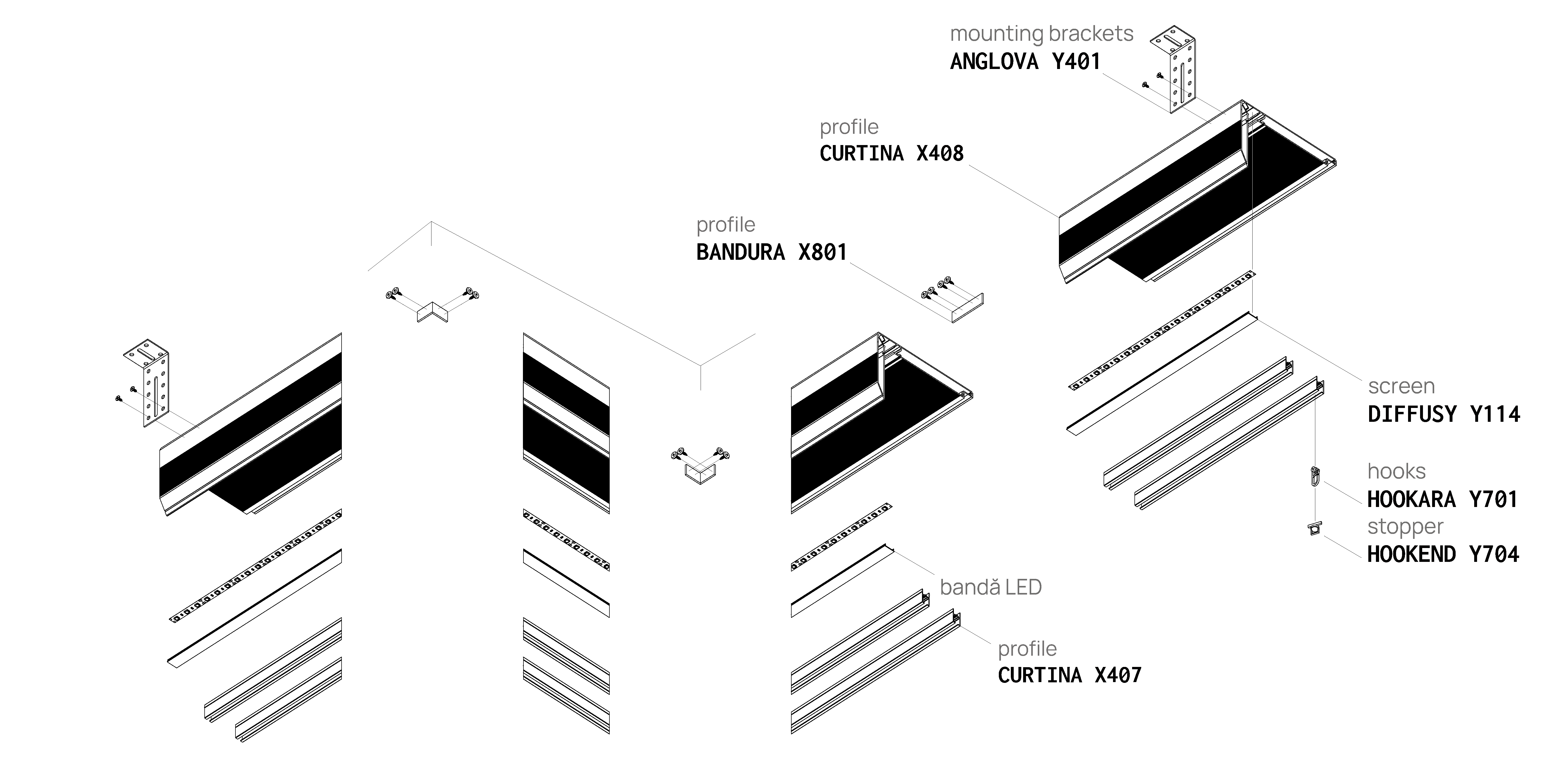

Installation diagram
Profile in the interior
