CURTINA X410
Colour: White matte
In stock, Delivery 24–48 h
Description

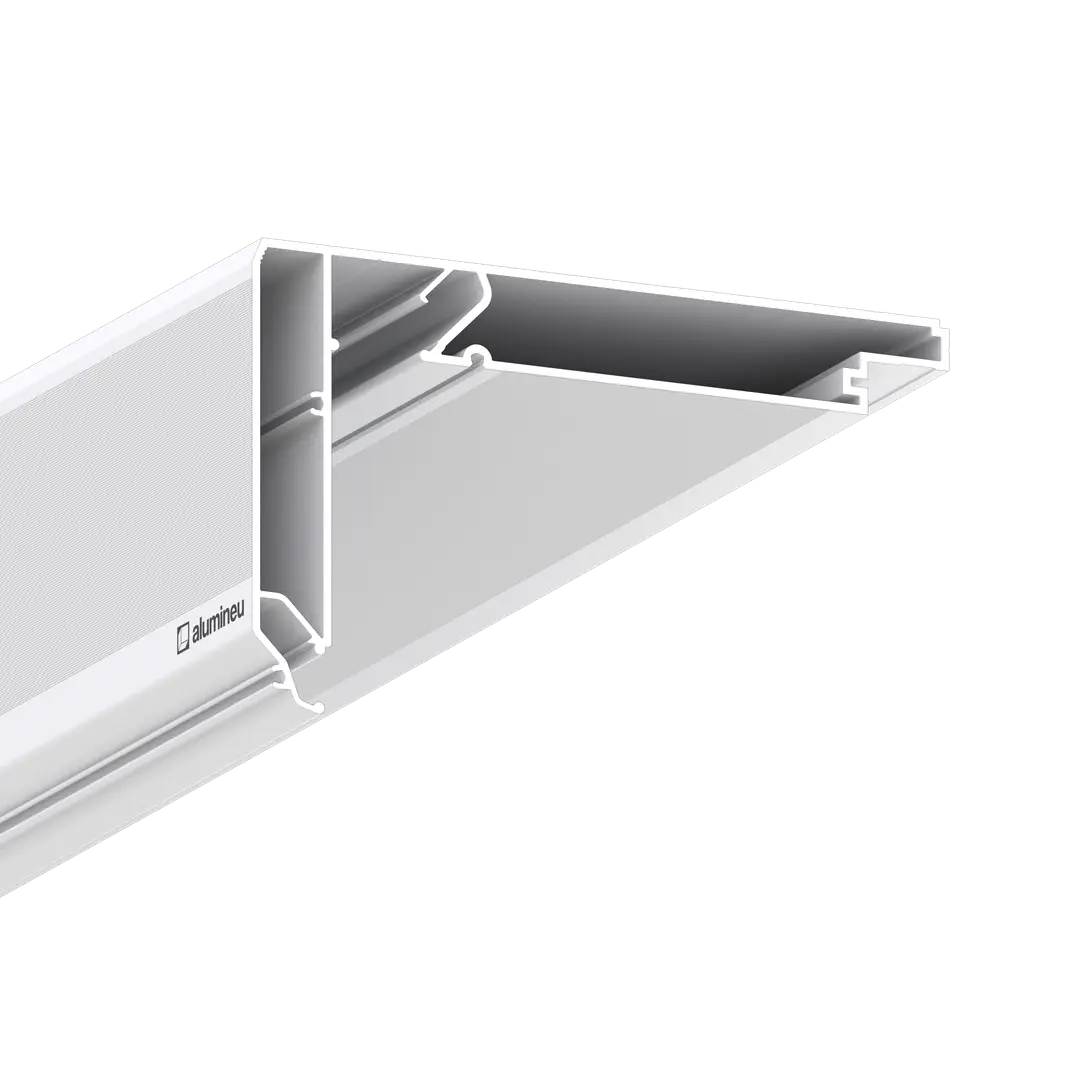

The CURTINA X410 aluminium profile forms a semi-open curtain niche with lighting and a visible matt white edge. It is designed for two-level stretch ceilings with a harpoon fastening system for PVC membranes.
The profile has no integrated tracks. Fit the double-track CURTINA X406 or single-track CURTINA X407 on the platform inside the niche.
For lighting, install an LED strip inside the profile's lighting chamber. An INSERTA Y015 or DIFFUSY Y114 diffuser closes the chamber, conceals the LEDs and produces even illumination. An INSERTA Y008 decorative insert closes the harpoon groove on the visible edge.
Technical specifications
- Brand:
- alumineu
- Material:
- Aluminum
- Membrane attachment:
- Harpoon
What's in the box
The profile is supplied in the length selected when ordering. No additional components are included in the package.
Installation
Adhere an LED strip up to 14 mm wide to the shelf inside the lighting chamber. Close the chamber with an INSERTA Y015 or DIFFUSY Y114 diffuser. To replace the strip, remove the diffuser while the stretch membrane stays in place.
Installation diagram
Profile in the interior
