CONTURA X601

Name: LED contour glow along the wall | CONTURA X601
Brand: Alumineu
SKU: CONTURA-X601

Colour: Mill finish

In stock, Delivery 24–48 h

Description

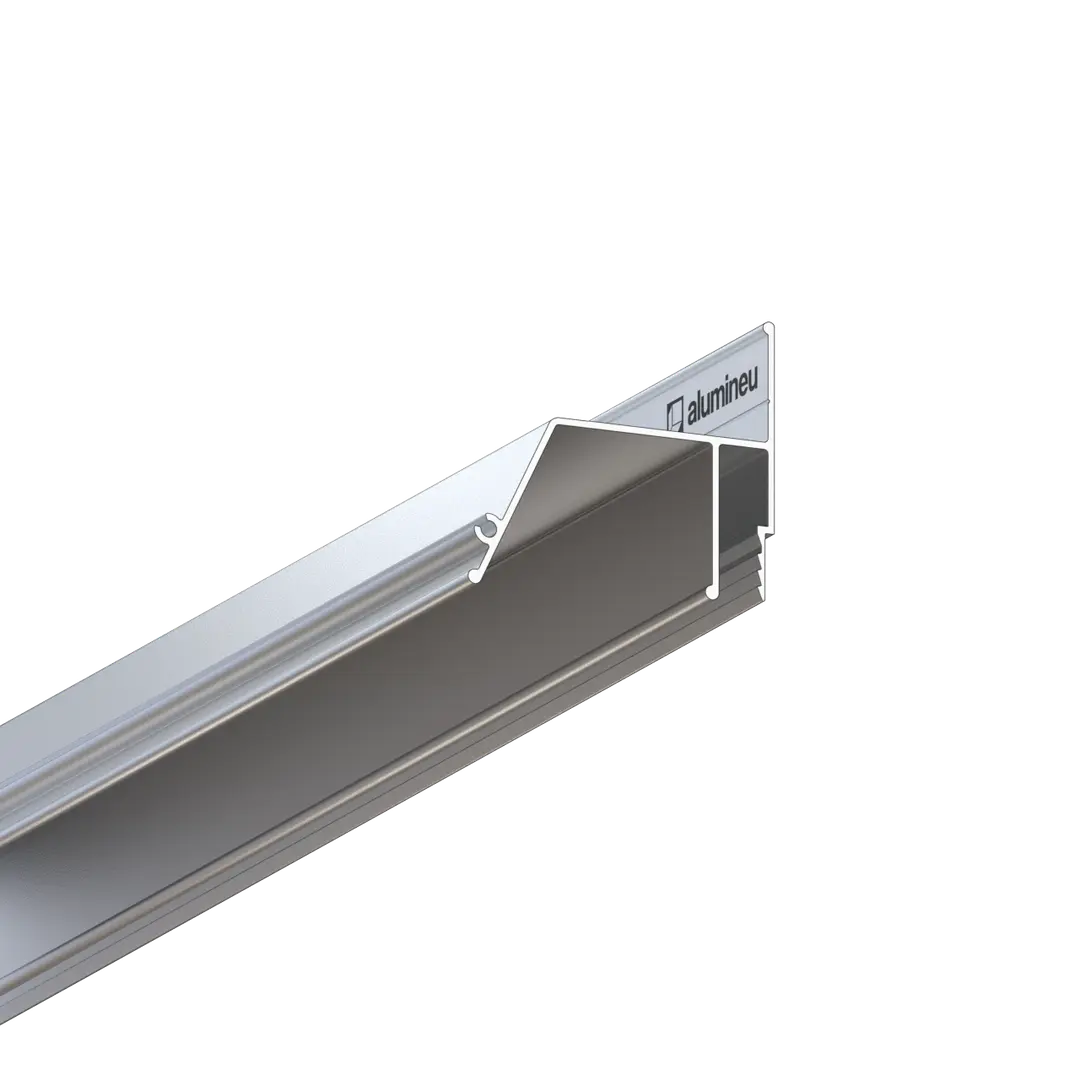

Aluminium contour profile CONTURA X601 for stretch ceilings with a harpoon fastening system for PVC membranes. Designed for lighting around the ceiling perimeter.

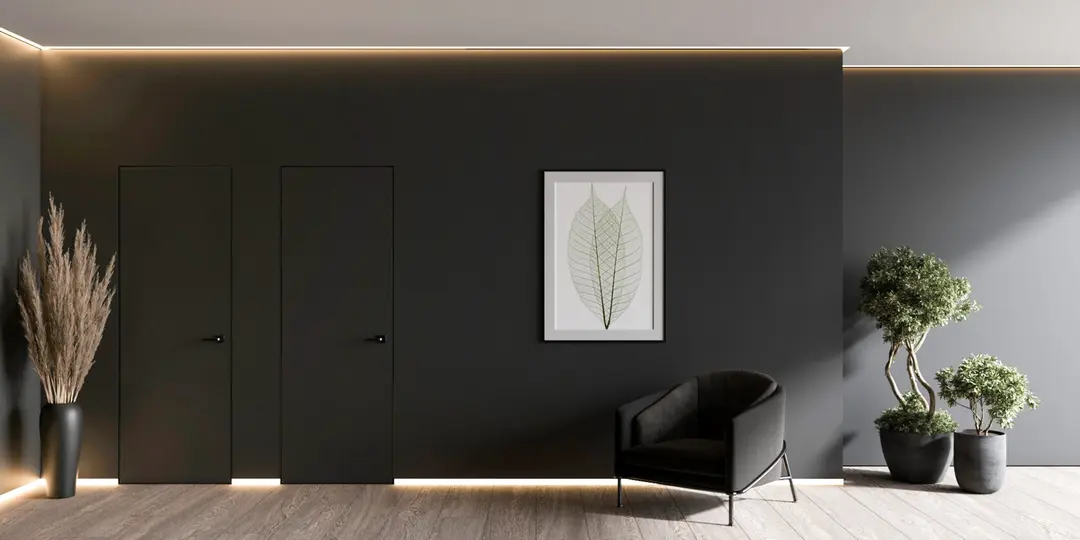

An LED strip is installed in the profile's lighting chamber. The stretch membrane closes the chamber and diffuses the light. The chamber is invisible when the strip is off. When the strip is on, a band of light runs around the ceiling perimeter.

The chamber has horizontal, vertical and angled mounting surfaces for the strip. They help direct the light and simplify installation on straight sections and corners. Wall insert INSERTA Y001 closes the groove after installation. The profile can be combined with CLASSIX X130, LIGHTRA X030 and STRATOS X702.

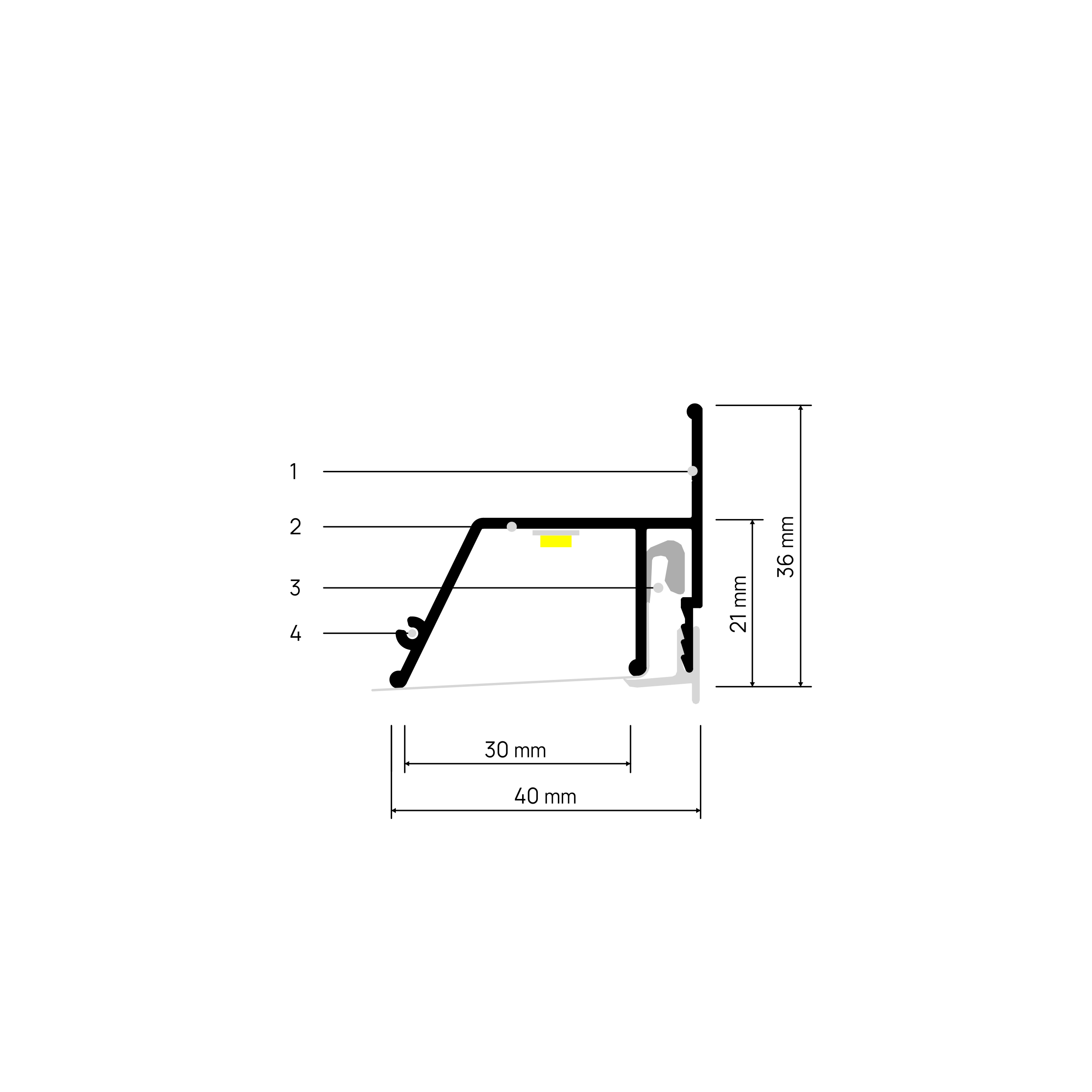

Technical specifications

Brand:: alumineu
Material:: Aluminum
Membrane attachment:: Harpoon
Light line width:: 30 mm

What's in the box

The profile is supplied in 2 m lengths, with no extra components.

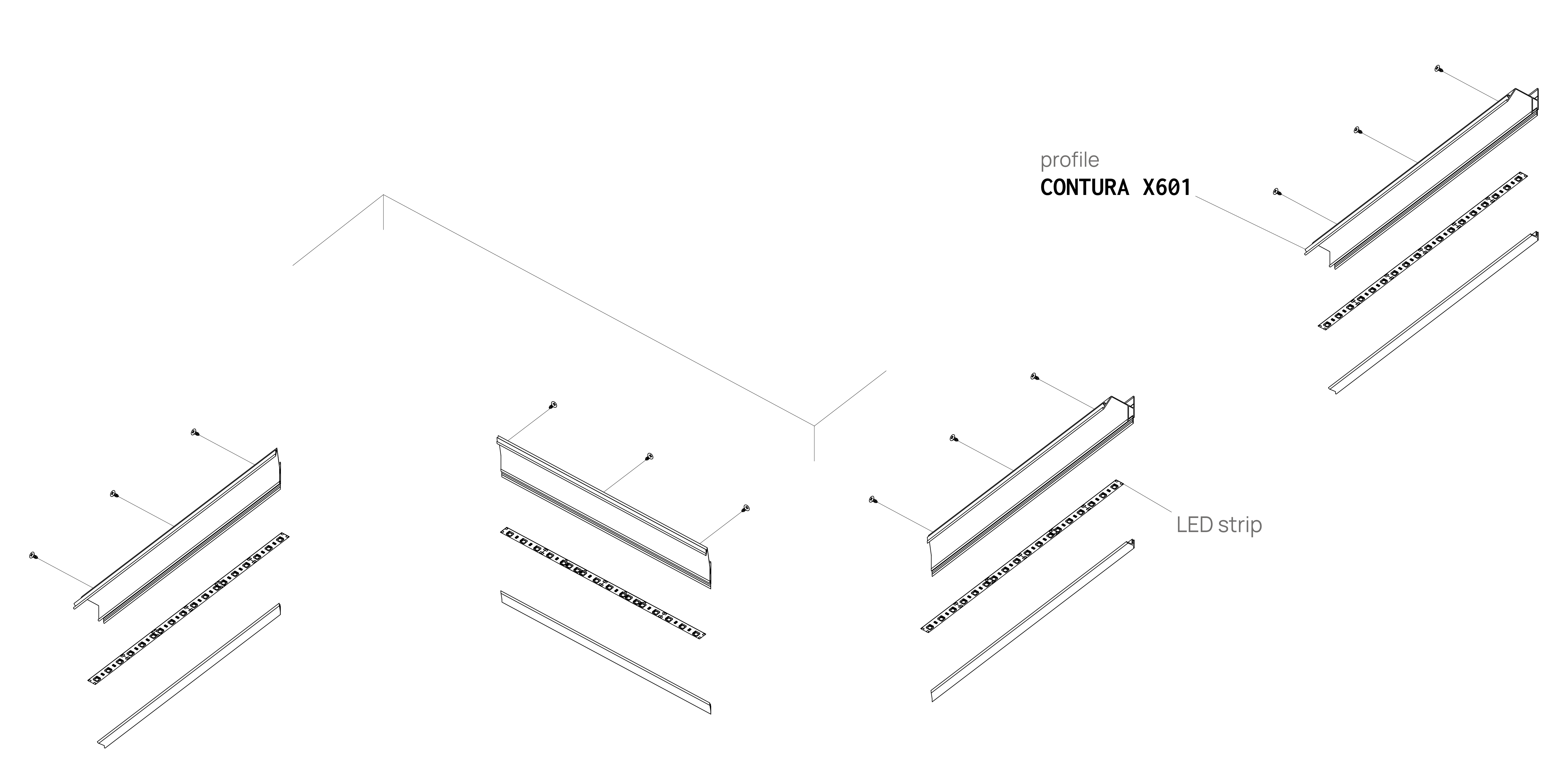

Installation

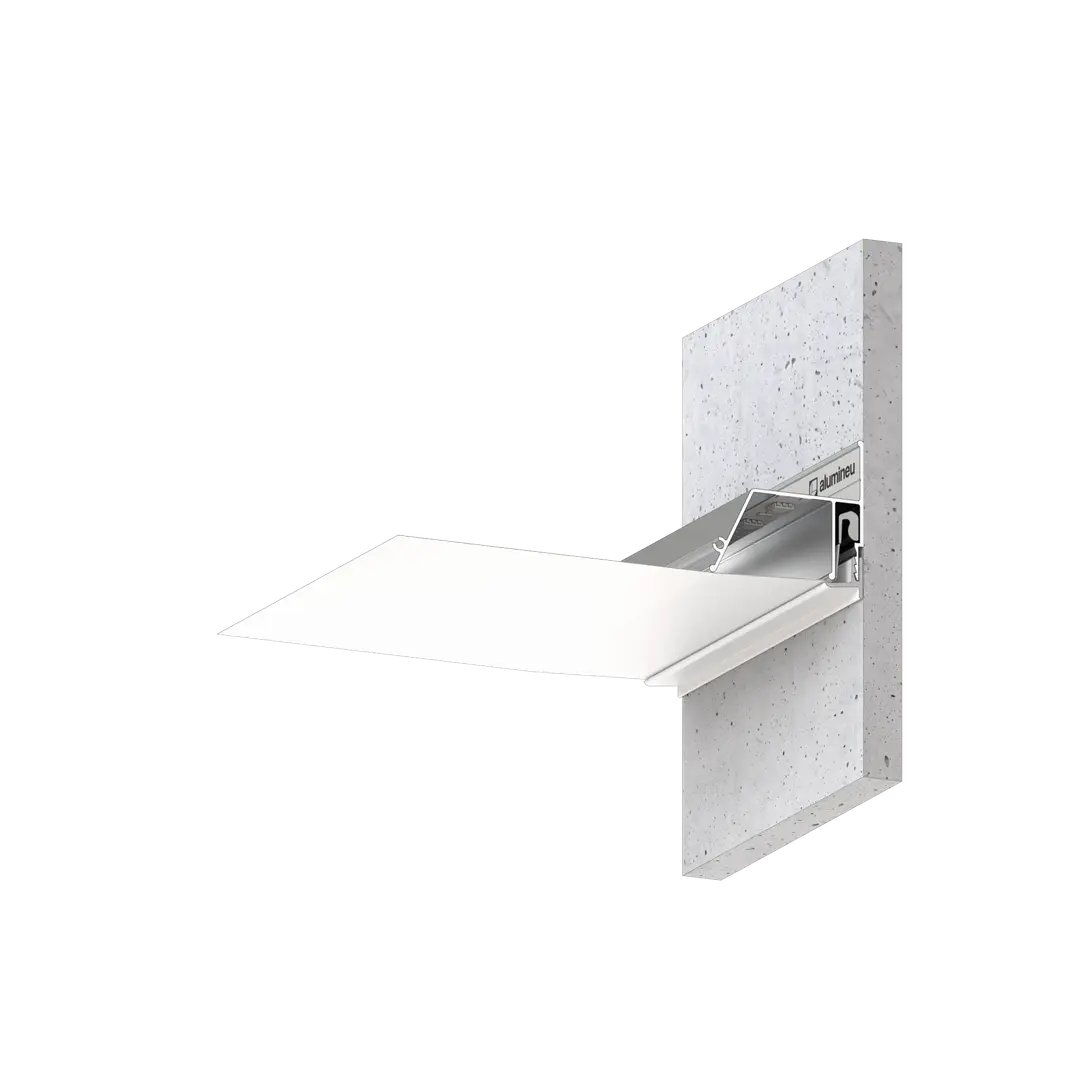

Fix the profile to the wall using the markings on the body.

Stick the LED strip onto one of the three mounting surfaces in the lighting chamber. After installation, the stretch membrane closes the chamber and wall insert INSERTA Y001 closes the profile groove.
