FLOATIA X303
Colour: Black matte
In stock, Delivery 24–48 h
Description
The FLOATIA X303 aluminium profile creates floating stretch ceilings with a harpoon fastening system for PVC membranes. Its reinforced body is designed for fixing to the structural ceiling. This mounting method suits rooms with glass, mirrors, porcelain tiles or concealed services, where fixing the profile to a wall is difficult.
The profile forms a 15 mm shadow gap. When the lighting is switched on, the gap becomes a luminous outline while the fixing remains above the membrane plane.
Reverse insertion conceals the harpoon. An INSERTA Y015 F diffuser covers the LED strip and produces even illumination.
Technical specifications
- Brand:
- alumineu
- Material:
- Aluminum
- Membrane attachment:
- Harpoon
- Floating gap:
- 15 mm
What's in the box
The profile is supplied in 2 m lengths, with no extra components.
Installation
Fix the profile to the structural ceiling with ANGLOVA Y401 mounting brackets. Insert the membrane in reverse so the harpoon remains concealed inside the profile.
Adhere the LED strip to the shelf and cover it with an INSERTA Y015 F diffuser. To replace the strip, remove the diffuser while the stretch membrane stays in place.
Profile details
- 1Joining groove
- 2Angled groove for harpoon
- 3Marking for wall mounting
- 4Shelf for LED-strip

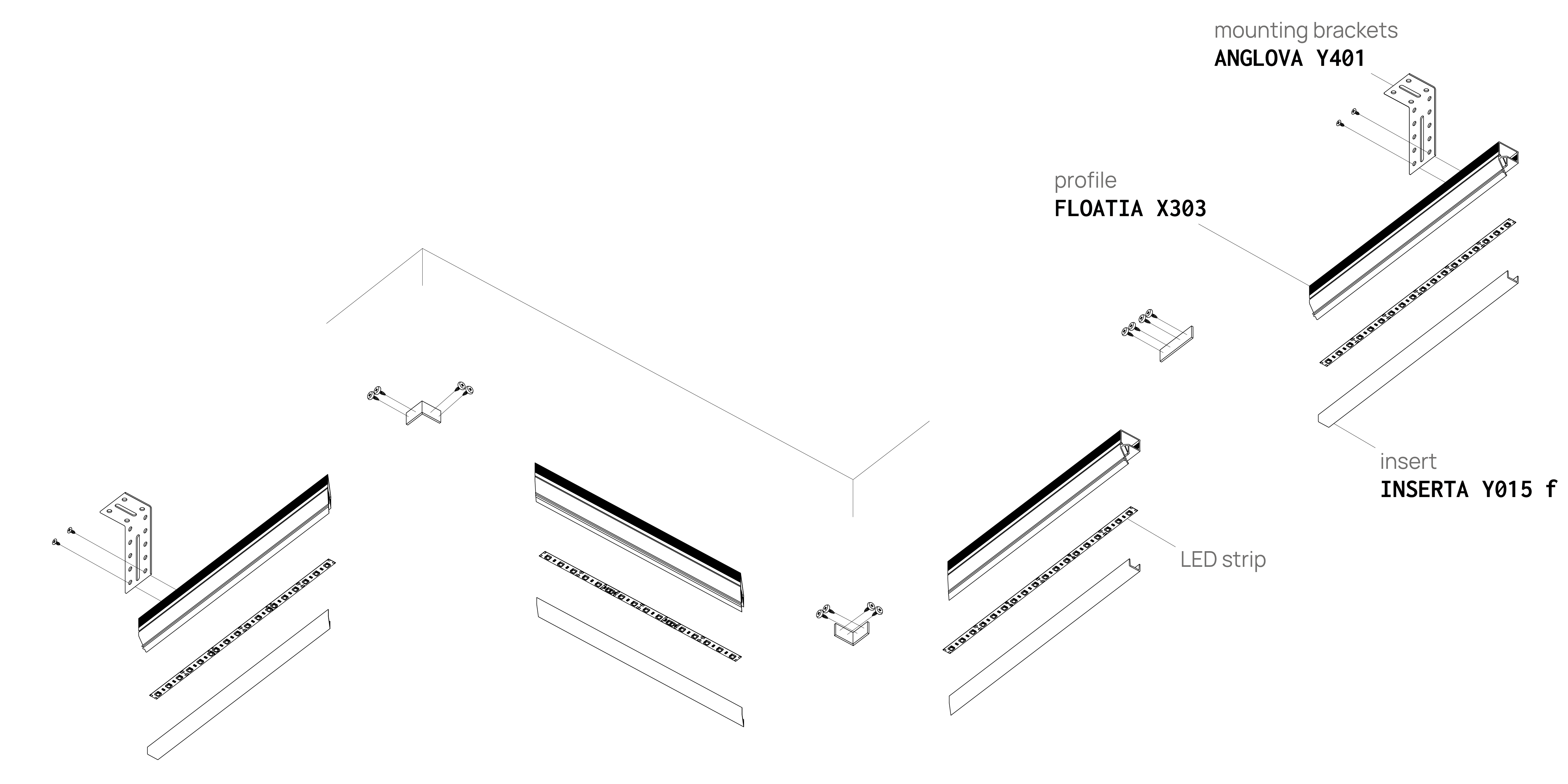

Installation diagram
Profile in the interior
Profile connections
