FLOATIA X302

Name: LED shadow gap 15 mm with diffuser | FLOATIA X302
Brand: Alumineu
SKU: FLOATIA-X302

Colour: Black matte

In stock, Delivery 24–48 h

Description

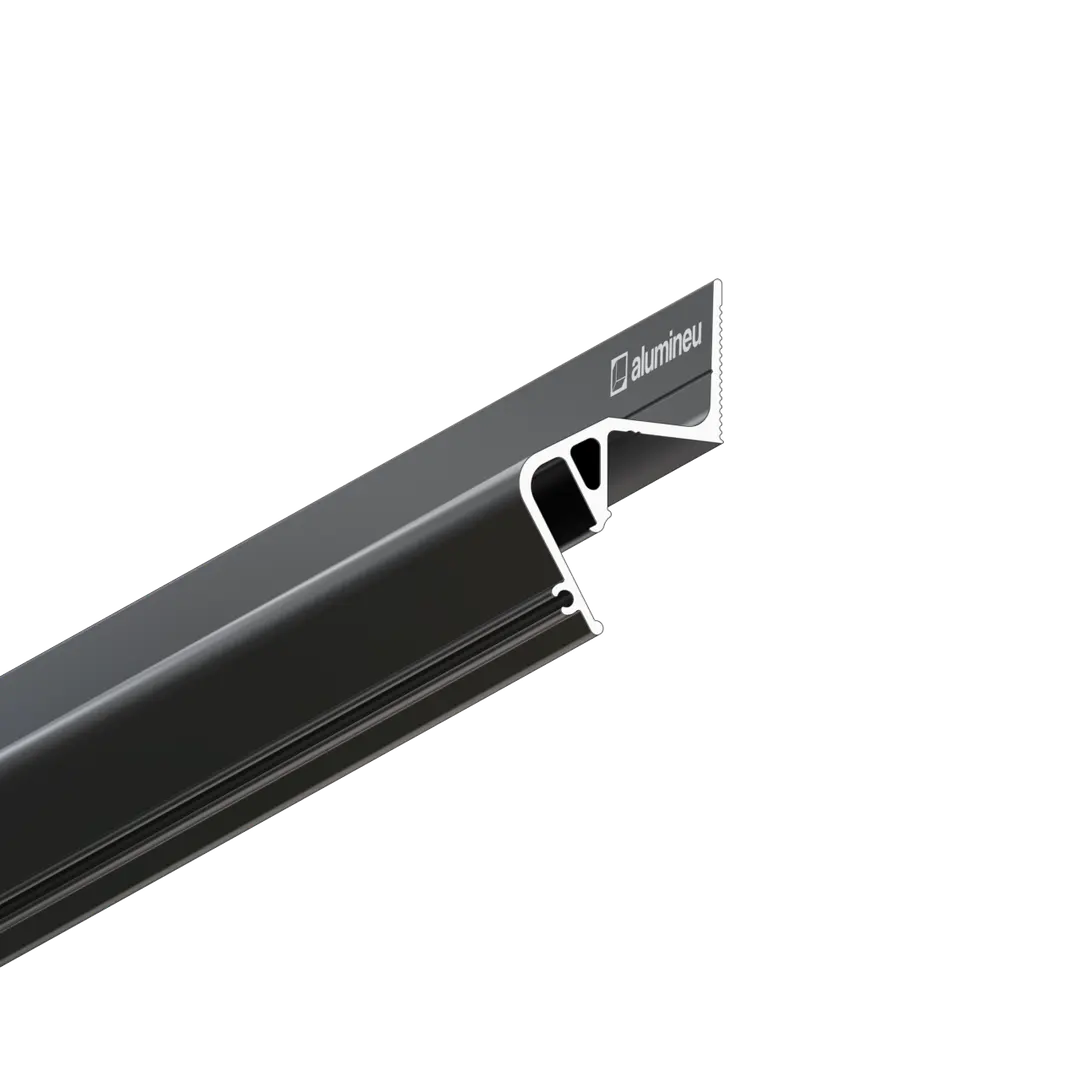

The FLOATIA X302 aluminium wall profile creates floating stretch ceilings with a harpoon fastening system for PVC membranes. It forms a 15 mm shadow gap that becomes a luminous outline when the lighting is switched on.

Reverse insertion conceals the harpoon without a decorative insert. An INSERTA Y015 F diffuser covers the LED strip and produces even illumination.

The matt black body further conceals the inside of the profile and the harpoon. The profile suits straight and curved perimeter sections. Ready-made welded FLOATIA NX302 corners preserve the geometry of turns.

Technical specifications

Brand:: alumineu
Material:: Aluminum
Membrane attachment:: Harpoon
Floating gap:: 15 mm

What's in the box

The profile is supplied in 2 m lengths, with no extra components.

Installation

Fix the profile to the wall along the markings on the body. Insert the membrane in reverse so the harpoon remains concealed inside the profile. Join straight sections and ready-made FLOATIA NX302 corners into a continuous outline.

Adhere the LED strip to the shelf and cover it with an INSERTA Y015 F diffuser. To replace the strip, remove the diffuser while the membrane stays inserted in the profile.

A stretch-ceiling installer can remove the membrane without damage.
